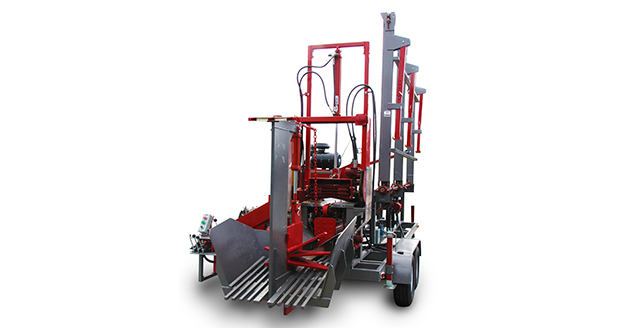

TW-PRO HD Firewood Processor
Select each thumbnail below to enlarge image
Equipped with a robust 74 HP Kohler Diesel engine, The TW-PRO HD firewood processor delivers a 7-second cycle time. The 5” cylinder and 3 ½” shaft combination requires less hydraulic fluid to refill the chamber before re-cycling
Specifications
Power Plant
74 HP Kohler Diesel
Pump (gpm)
33-20-13
Weight (lbs.)
8,500

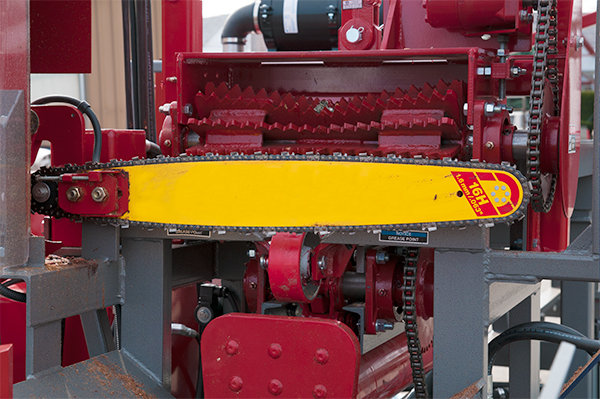

Saw (in.) / Chain Gauge
25 Hydraulic/ .404

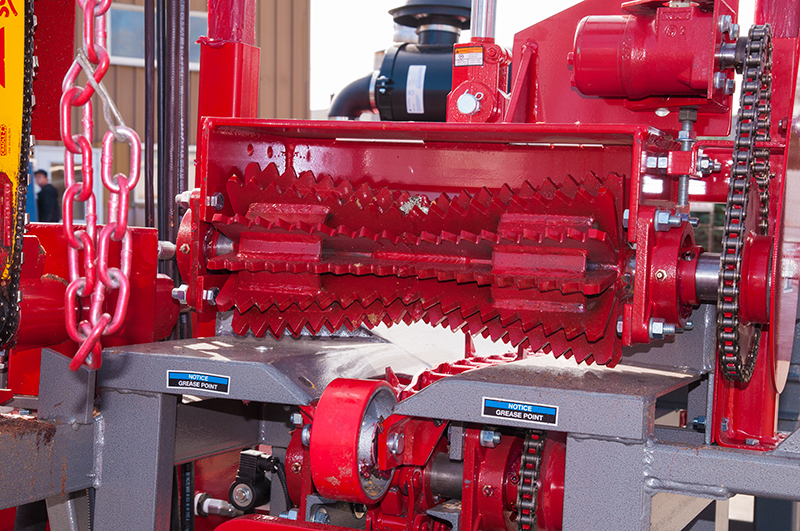

Top Roll Clamping System
STD
Splitter Cylinder Diameter (in.)
5
Maximum Log Diameter (in.)
24
Trough Length (ft.)
16 STD
Maximum Log Length (ft.)
24
Hydraulic Capacity (gal.)
65
Live Deck (Hydraulic)
STD
Deck Size (ft.)
8 deep x 12 wide
Hydraulic Oil Cooler
STD
Electric Auto Cycle
STD
Cycle Time (sec.)
4.5
4-Way Wedge
OPT

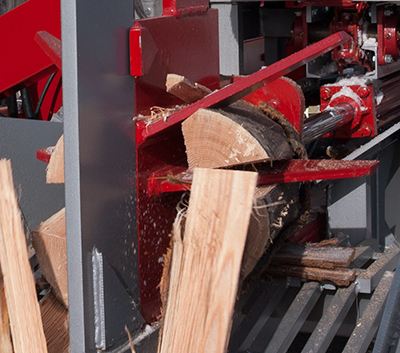

6-Way Wedge
STD
8-Way Wedge
OPT
12-Way Wedge
OPT
DOT Lights
STD
Operator's Seat
OPT
